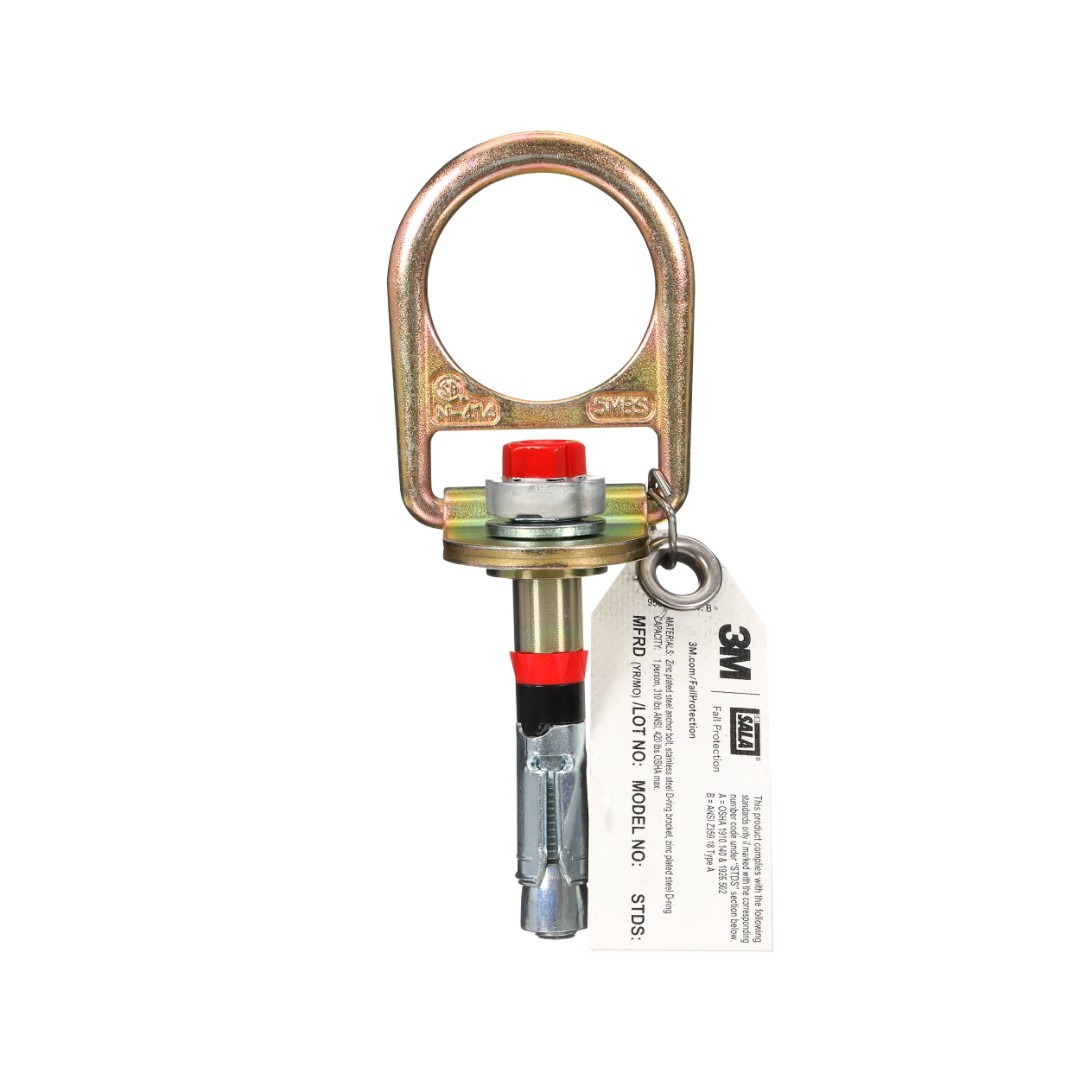

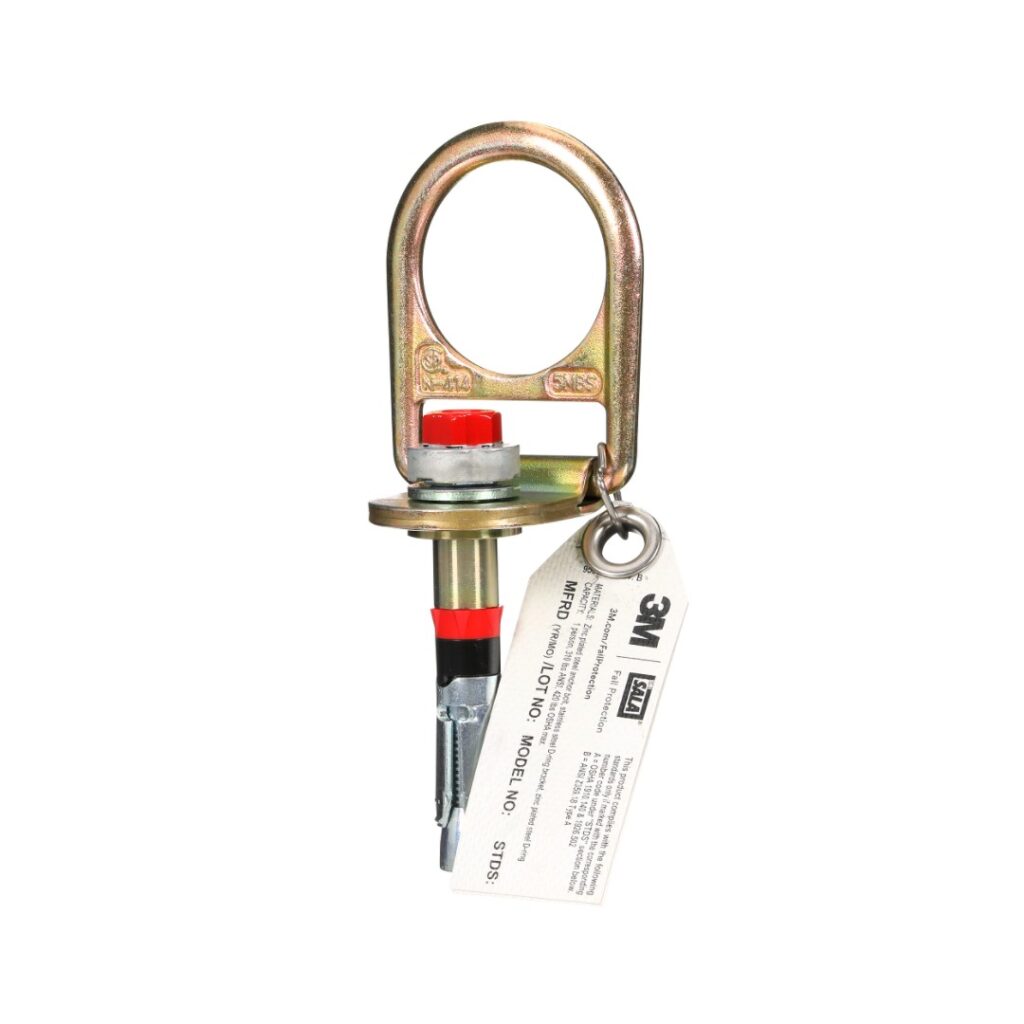

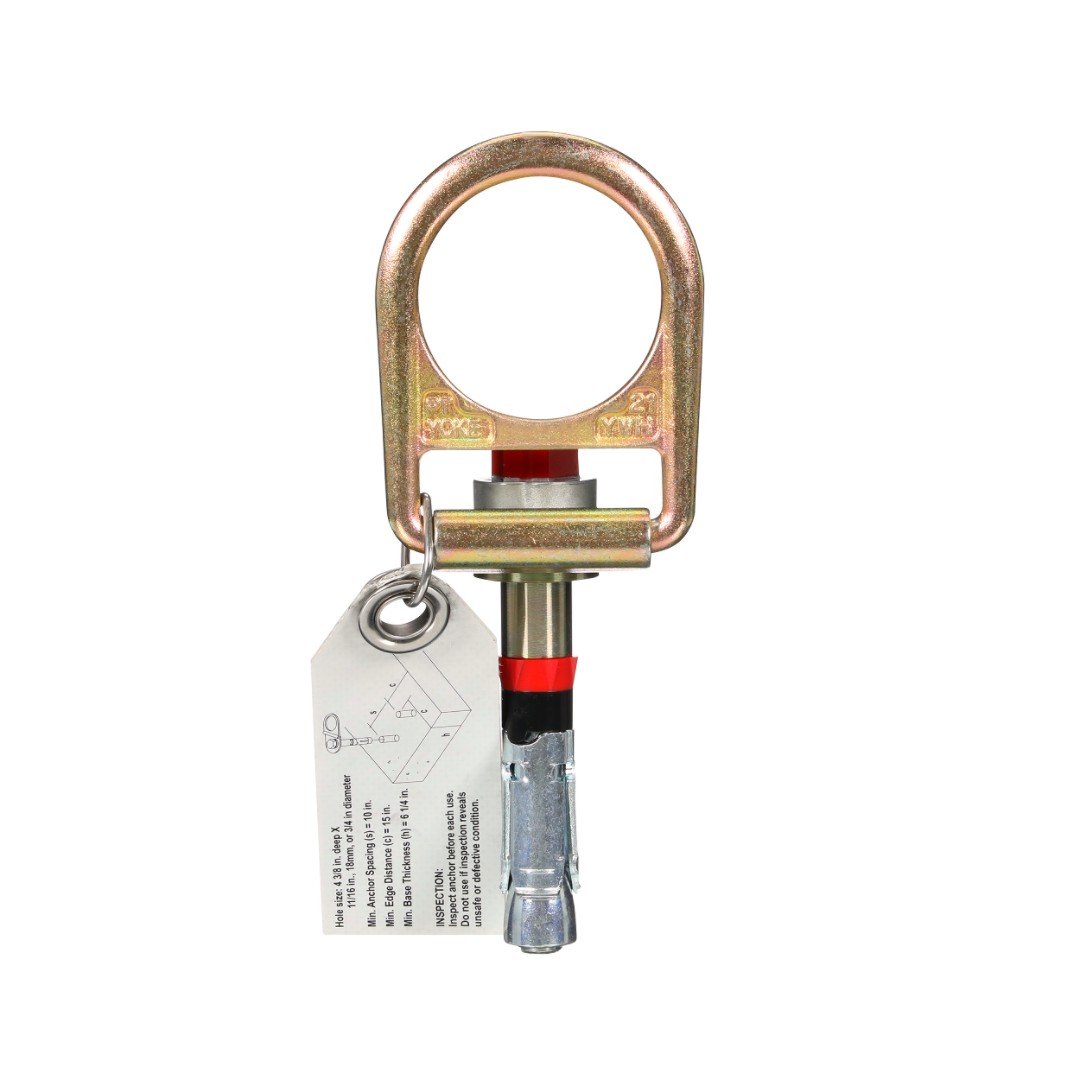

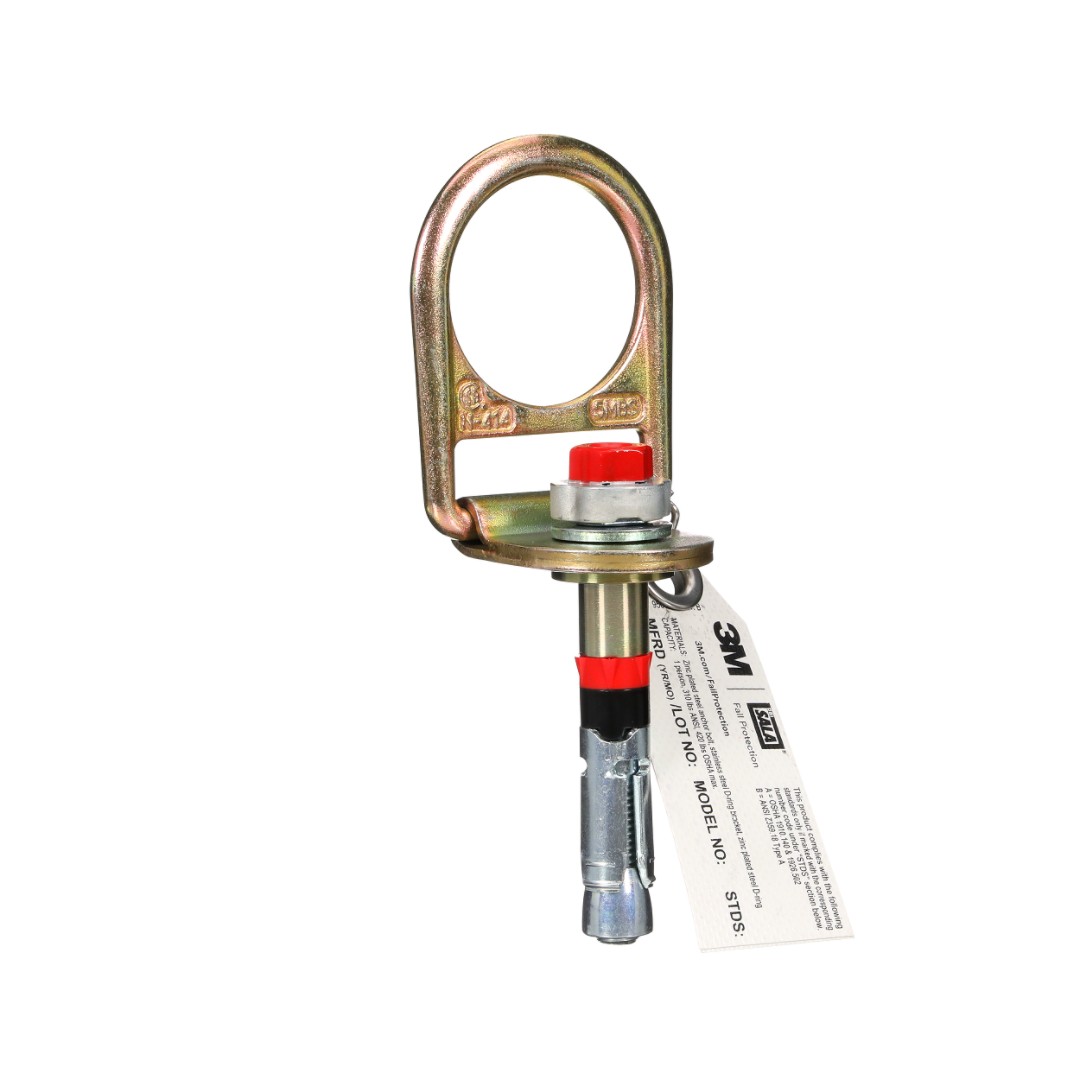

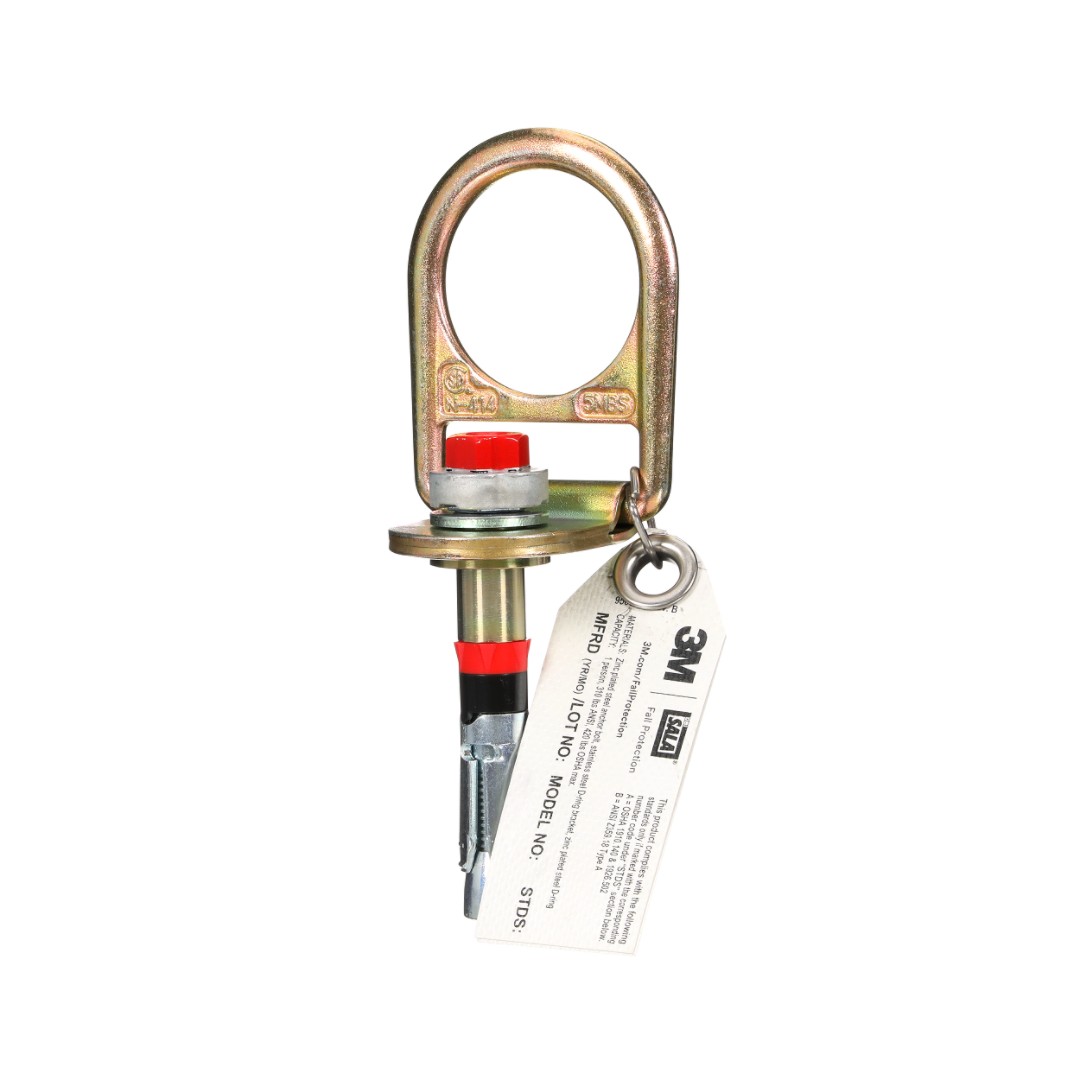

3M™ DBI-SALA® Concrete D-ring Anchor 2104560

$146.75

3M™ DBI-SALA® Concrete D-ring anchor for 11/16 in., 18 mm or 3/4 in. hole with swiveling D-ring.

SKU:

2104560

3M, Fall Protection, Anchors

Product Overview

3M™ DBI-SALA® Concrete D-ring anchor for 11/16 in., 18 mm or 3/4 in. hole with swiveling D-ring.High strength construction

Compact and lightweight design
Rugged and corrosion resistant
Installs into 11/16 in., 18 mm or 3/4 in. concrete hole
Use vertically in wall or horizontally in ceiling
Install as temporary or permanent anchor
Reusable D-ring assembly – extra bolts available separately
Safe hook-up indicator
Swiveling D-ring tie-off point
3M’s anchorage connectors are built from quality materials providing high strength and durability to stand up to the toughest environments.
Anchorage connectors are the foundation of most fall protection systems, often overlooked but critical components because they securely attach your system to the anchorage.
They all must provide a secure point of attachment for a complete personal fall arrest system and must be capable of supporting a load of 5,000 lbs. (22kN) or of meeting OSHA’s criteria of a 2-to-1 safety factor.

Details:

Anchor Install Type -Permanent & Reusable
Attachment Type – Screw
Connected Safety ID Equipped – No
Install Type – Reusable or Permanent
Material -Zinc Plated Steel
Product Color -Silver
Product Type – Concrete D-ring Anchor
Recommended Industry: Construction, General Industrial, Mining
Specifications Met -OSHA 1910.140, OSHA 1926.502
Weight (Imperial) – 1.2 lb
Weight Capacity – 310 lbs. (141 kg) ANSI / 420 lbs. (190 kg) OSHA
Weight Capacity (Imperial) – 310 lb
Weight Capacity (Metric) – 141 kg
