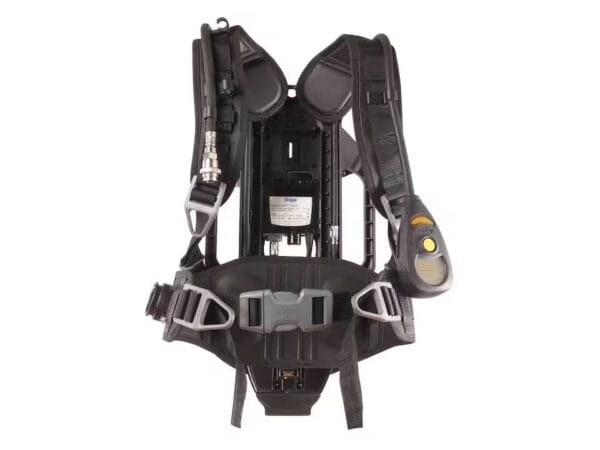

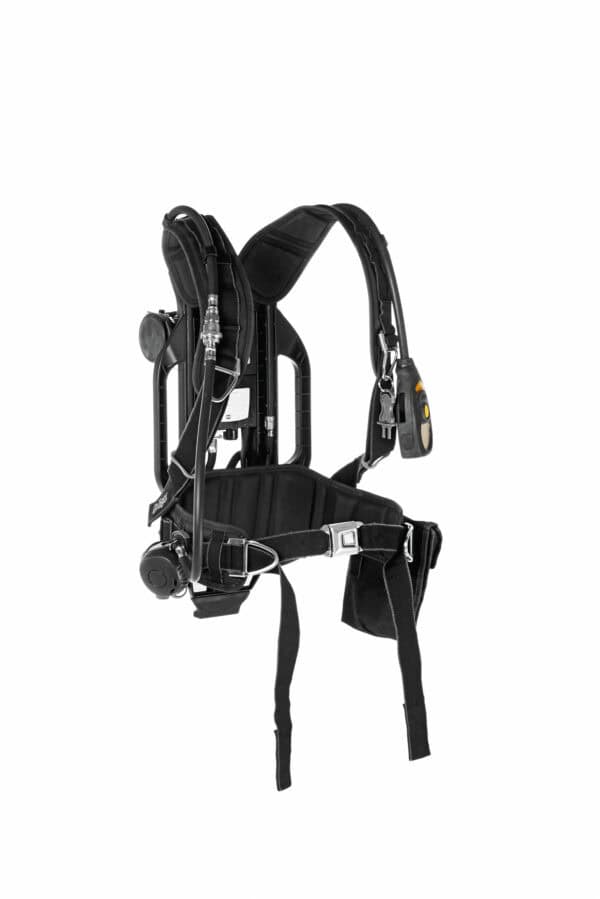

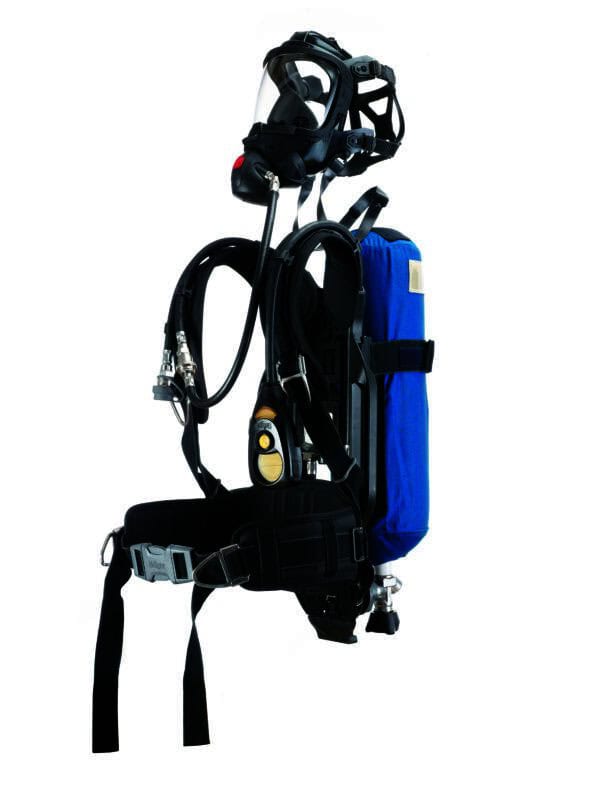

Dräger PSS® 5000 NFPA-Certified SCBA

$7,088.00 – $8,174.00

The Dräger PSS 5000 SCBA is designed to withstand the high wear and tear that firefighters face daily – while providing an enhanced level of comfort and functionality.

Product Overview

Effective firefighting requires trusted breathing protection in the harshest environments. The Dräger PSS® 5000 provides the budget-conscious fire department with an ergonomically advanced SCBA. With a wide range of features – such as bi-lateral hose routing and cylinder Quick Connection – the PSS® 5000 meets the needs for today’s complex fire grounds.

Proven technology combines comfort with performance

The Dräger PSS 5000 SCBA is designed to withstand the high wear and tear that firefighters face daily – while providing an enhanced level of comfort and functionality. Made of tough chloroprene rubber material and Aramid-blend webbing, the PSS 5000 harness is ideally suited for extended wear and frequent use.  The flexible harness connects to a lightweight, stable back plate, while the waist belt pivots to reduce pressure on the wearer.



Integrated systems reduce risk and increase versatility

To minimize the risk of damage or snagging, the Dräger Sentinel 7000 electronic system and air-supply hoses are integrated into the backplate. To further streamline and reduce snag hazards, the lung-demand valve (LDV) – and Dräger Sentinel hoses are routed over the shoulders. Conventional waist-mounted hoses can also be fitted to the carrying system, making the Dräger PSS 5000 one of the most versatile SCBA systems available.

Easy maintenance to lower cost of ownership

The following features keep Dräger PSS 5000 downtime and maintenance costs to a minimum:
  • Innovative slide-and-lock mechanism for fast and easy harness assembly and disassembly
  • Harness detaches from the backplate without the use of tools
  • First stage reducer snap-fit connection allows pneumatics to be fitted or removed quickly and easily
  • Hose clips push in and out to allow swift removal of hoses from the harness pads for cleaning
  • Chemical-resistant harness and waist belt design prevent excessive water absorption and reduce cleaning and drying time
  • Standard AA batteries, no manufacturer-required overhaul, and few replacement parts contribute to a lower total cost of ownership over the life of the SCBA



Dräger Sentinel 7000–Real-time monitoring

The Sentinel 7000 electronic monitoring system provides options to satisfy the needs of any fire department. Incorporating a centralized power supply and pressure sensor module within the backplate, the robust system combines maximum component protection with balanced weight distribution for reduced physical stress.   Housed in impact-resistant, water-resistant casings, the Sentinel 7000 demonstrates excellent reliability on the fire ground. An electronic gauge provides real-time monitoring of essential information, including:

  • A personal alert safety system (PASS) device
  • Intuitive push-button operation for ease of use
  • Configurable settings to suit individual preferences
  • Data logging for improved post-incident analysis
  • Accurate, continuously updated digital display of pressure and time to EOSTI activation (time based on dynamic breathing rate)
  • Battery status display
  • 360° visual and audible alarms triggered when the PASS is activated
  • Automatic self-tests and system tests



Key Facts

Application:    Fire Fighting
Pivoting waist Belt   ✓
Sliding Waist Belt    ✗
Height Adjustment ✗
Reflective Straps     ✗
Buddy lights             ✓ optional (180°)

Monitoring System

Mechanical gauge  ✓
Mechanical gauge with transmitting function
                         ✓
Digital gauge          ✓
Automatically activated PASS      ✓ optional
Head Up Display (HUD)               ✓ optional
Compatible with Dräger FireGround  ✗

Technical Data

Weight (backplate & harness):    10.14 lb
Input Pressure:                              0 – 300 bar

Additional information

Configuration

Dräger PSS® 5000 HP Quick Connect w/ Sentinel 7000 w/ LDV, Dräger PSS® 5000 LP Quick Connect w/ Sentinel 7000 w/ LDV, Dräger PSS® 5000 HP CGA w/ Sentinel 7000 w/ LDV, Dräger PSS® 5000 LP CGA w/ Sentinel 7000 w/ LDV
