Removable Concrete Anchor by Safewaze | 022-4085

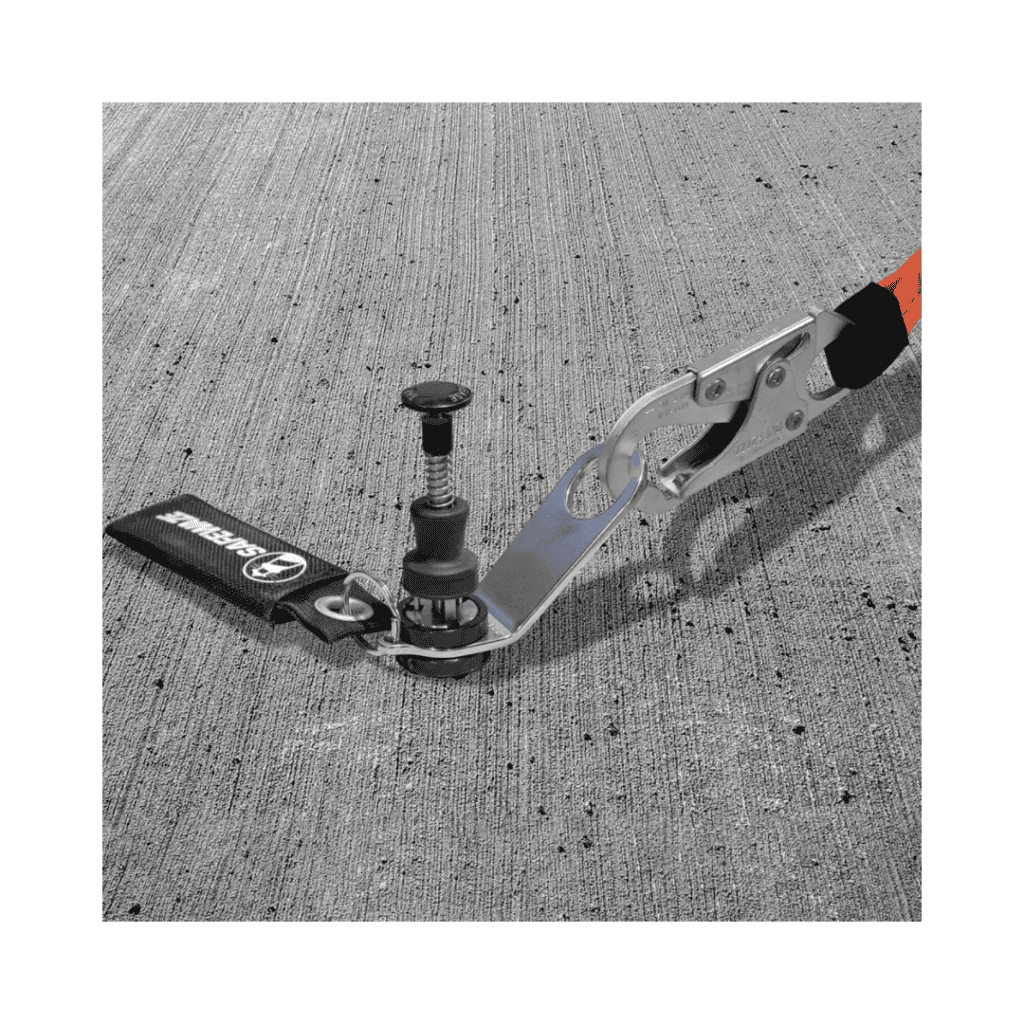

Easy installation in seconds with quick trigger removal by hand or optional assist with a simple hammer tap. The trusted design ensures the anchor offers secure protection while you work and releases quickly when you need to move on.

• Removable and reusable with reliable durability

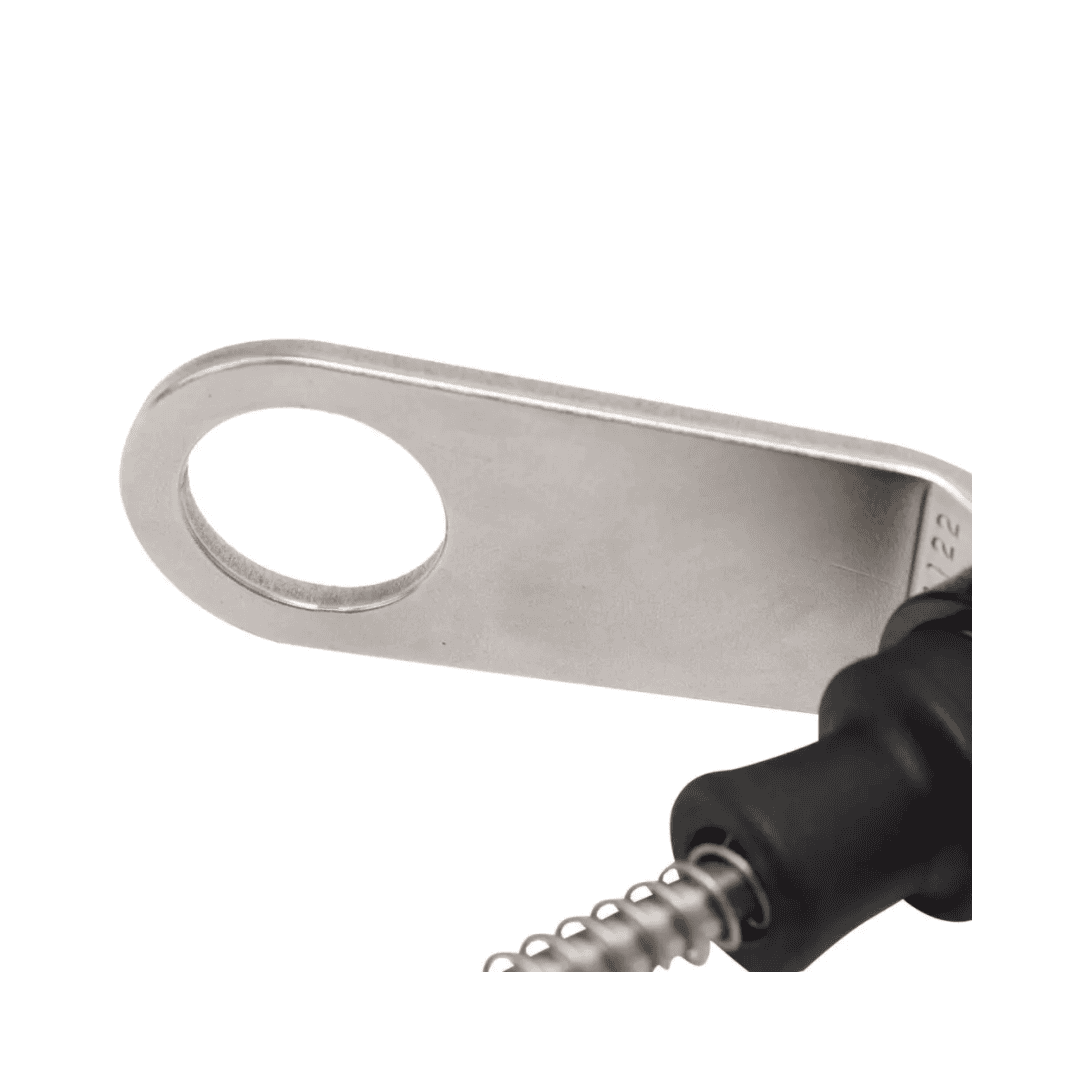

• 360° rotating connection point for increased user mobility
• Easy trigger provides quick release for repeated use

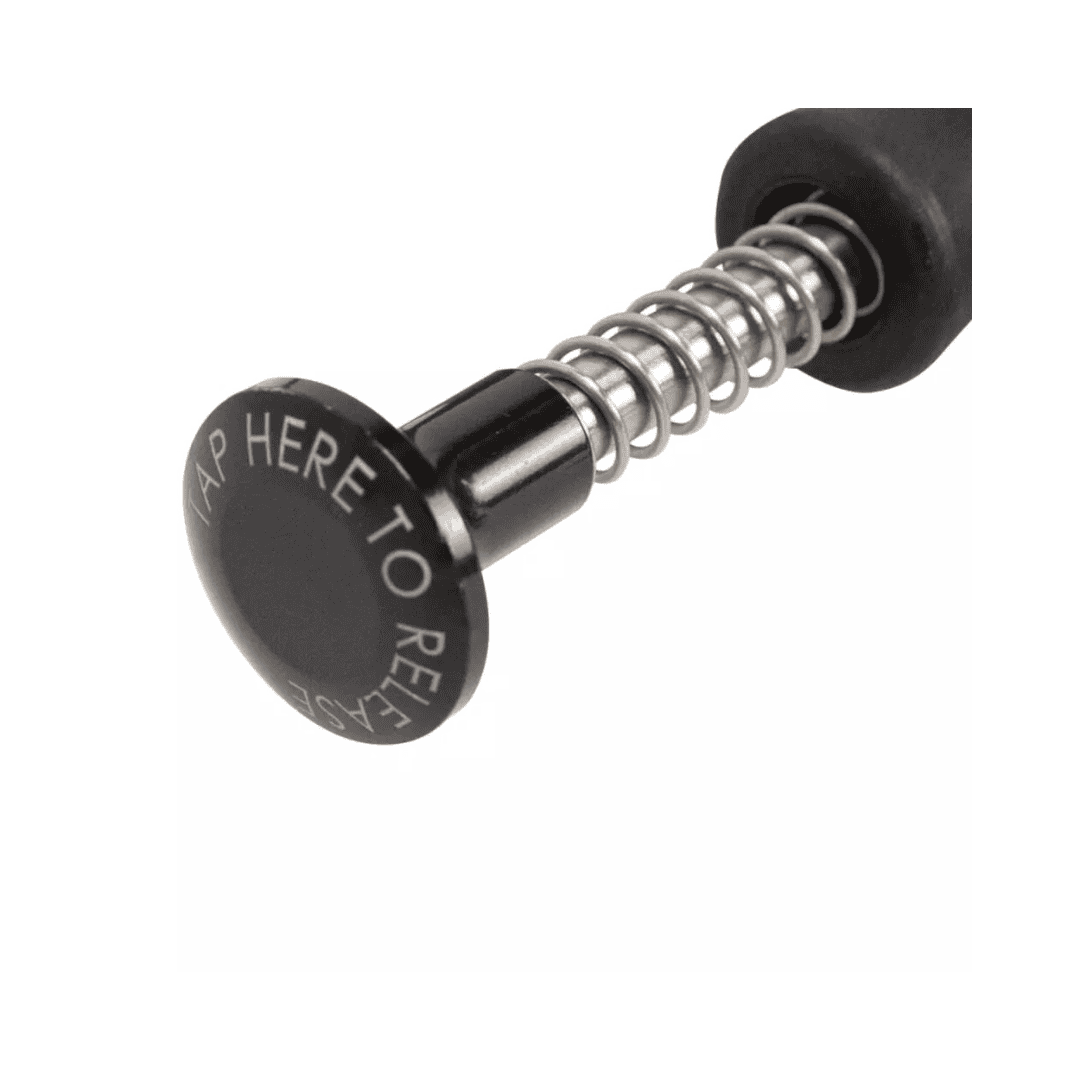

• Durable cap for optional hammer assisted removal

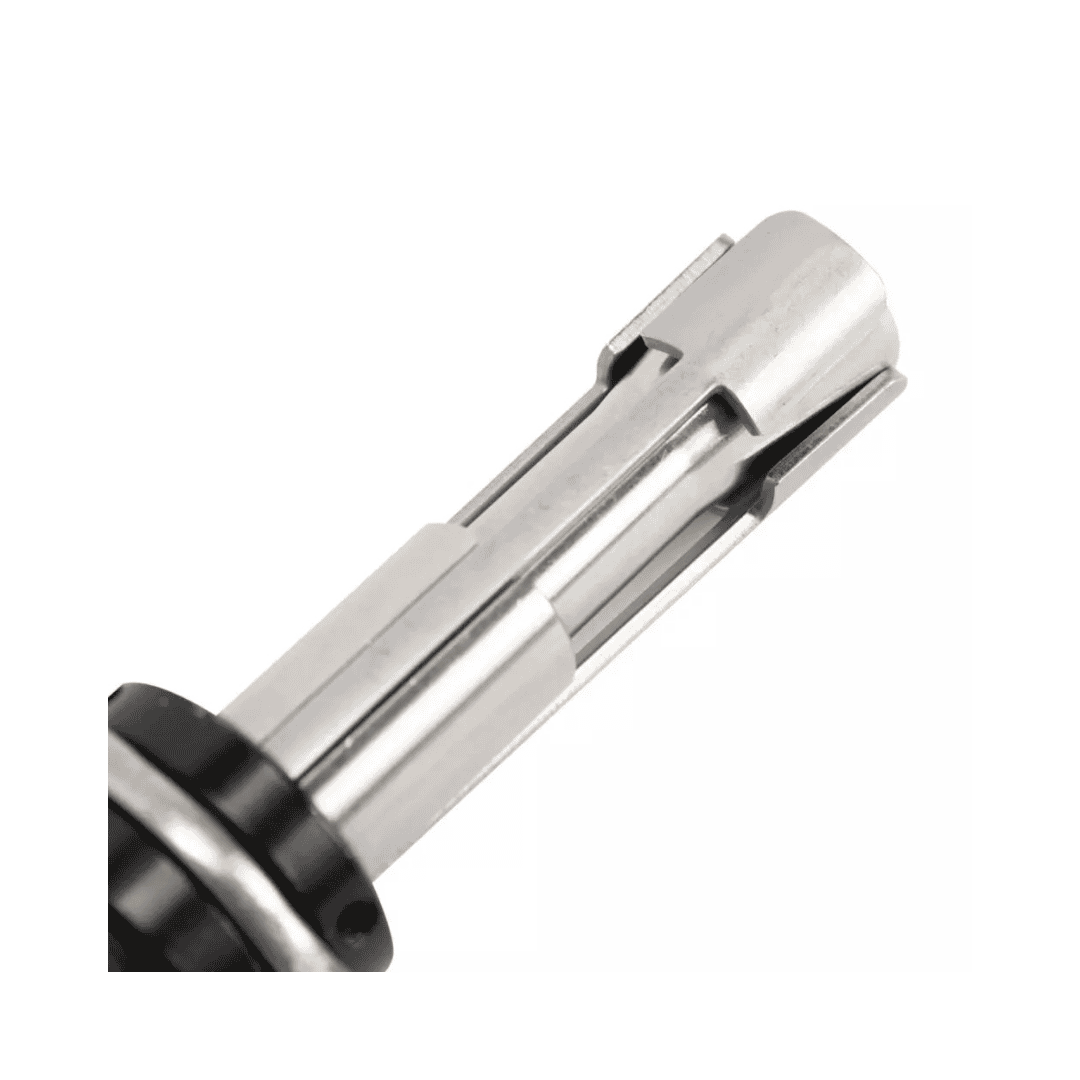

• Corrosion-resistant stainless steel construction
• Protective label cover ensures compliance
• For horizontal, vertical and overhead use – including use with HLLs
• 3/4″ x 3″ drilled hole required for installation

Specifications

• Materials: Stainless steel body and D-ring, plated steel cap, nylon trigger, polyester label cover
• Weight: 0.9 lbs. (0.4 kg)
• Length: Overall length 6.5″ (165 mm), exposed length 3.7″ (94 mm)
• Anchor Clearance: 6″ (25 mm) diameter
• Hole Depth: 3″ (76 mm)
• Hole Diameter: 0.75″ (19 mm)
• Minimum Breaking Strength (when installed in reinforced concrete):
  • 5,000 lbs. (in 3,000 PSI concrete)
  • 10,000 lbs. (in 4,000 PSI or higher concrete)
• Working Load Limit: 1,800 lbs. (in 4,000 PSI or higher concrete)
• Weight Capacity:
  • ANSI: 130-310 lbs. (59-141 kg)
  • OSHA: Up to 420 lbs. (191 kg)

Standards Met:

• ANSI: Z359.18-2017 Type T
• OSHA: 1926.502, 1910.140, 1910.66
