3M™ Adflo™ PAPR with 3M™ Speedglas™ Welding Helmet 9100MP HE, Li Ion Battery, Hard Hat, ADF 9100XXi -37-1101-30iSW,
$2,810.75
High Efficiency particulate respiratory protection system for welders. Thanks to the improved optics, the 3M™ Speedglas™ ADF 9100XXi allows you to more readily recognize colors as compared to our other models.
Product Overview
The 3M™ Adflo™ Powered Air Purifying Respirator System with 3M™ Speedglas™ 9100 MP Welding Helmet is designed to help protect the eyes and face from radiation, sparks, and spatter. This system also includes respiratory protection, head protection, optional hearing protection, and a flip-up welding shield.
Respiratory protection
When used correctly, the Adflo powered air purifying respirator (PAPR) and welding helmet achieve an assigned protection factor (APF) of 25. The PAPR system includes particulate filters, a lithium ion battery, and a spark arrestor.
Protection against sparks and spatter
A wide, clear faceshield helps protect the face and eyes against welding splatter, sparks and arcs. The hard hat stands up to tough jobs involving flying debris; including grinding, and TIG, MIG/MAG, and stick welding. ADF darkens milliseconds after welding begins, ensuring that eyes are protected throughout the operation.

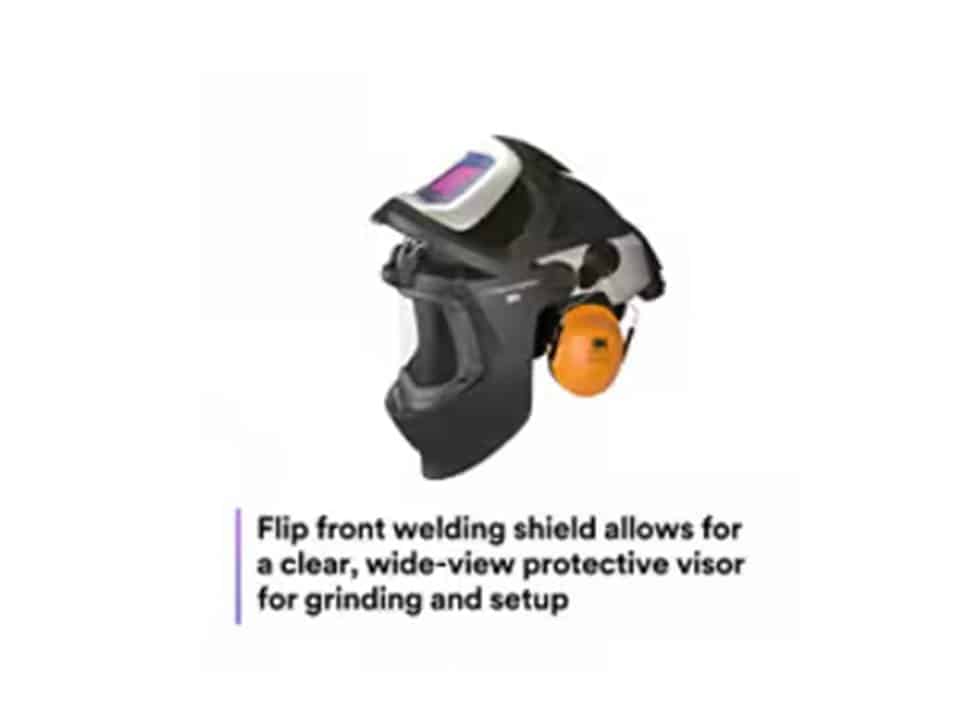

Flip-up weld shield
The flip-up 9100-Series welding shield allows for quick transition between welding and non-welding tasks, and its ADF offers color contrast and protection against airborne debris.
Details
ADF Dark State Shades – Variable 5, 8-13
ADF Model – 9100XXi
ADF Shade Range – Variable 5, 8-13
ADF Viewing Area (Metric) – 73 mm x 107 mm
ADF Viewing Area (hxw) – 2.8×4.2in
Air Source – PAPR
Assigned Protection Factor – 25
Battery Life – Adflo – 10 Hours, PAPR: up to 12 hours, ADF: up to 1800 Hours, ADF 2000 hours
Battery Type – PAPR: Lithium ion, Lithium-Ion
Brands – Adflo™
Breathing Tube Grade – Heavy Duty
Cartridge or Filter Included – HE Filter
Charging Time – Turbo: approx. 4.5 hours
Comes with Auto-Darkening Filter (ADF) – Yes
Compatible Welding Helmet – 9000 Series
Dark Shades – Shade 5, 8-13
Features – Eye & Face Protection
Grinding Option – Flip-up with Clear Visor
Headgear Type – Grinding Visor, Hard Hat with Welding Helmet, Hardhat with Faceshield and Welding Shield, Respiratory Assembly, Welding Helmet with Respiratory Assembly, Welding Helmet
Includes: Adflo™ PAPR with Speedglas™ 9100 MP Kit, 9100XXi Lens
Lens Shade – 5, 8 – 13
Lens Type – Auto-darkening
Light State – Shade 3
Mounting Type – Belt-mounted
NIOSH Cartridge or Filter Assigned Color Coding – Magenta
Operating Temperature (Celsius) – -5°C to +55°C
Partial Charge Time – 80% in approx. 3 h
Product Color – Black, White
Product Series – 9100 MP, 9100 FX-Air, Adflo
Product Type – Welding Respiratory Systems
Recommended Application – Assembly, Assembly & Mechanical, Facility Maintenance, Grinding, Machine Operation, Metal Repair, Sanding, Welding
Recommended Industry – Design & Construction, Heavy Infrastructure, Industrial Maintenance
Sensitivity – 5 Level (TIG>1A & MIG/MAG, Stick)
Series Type -Adflo
Side Windows – Yes
Specifications Met – ANSI Z87.1-2010, NIOSH Approved
Switching Time -40 – 1300 ms
Switching Time (Light-Dark) – 0.1 ms @ 73°F (23°C)
User Type – Professional
Viewing Area (Imperial) – 2.8 in x 4.2 in
Viewing Area (Metric) – 73 mm x 107 mm
Visor Type – Clear Visor and Auto-Darkening Welding Lens
Welding – Yes
Welding Process – Stick, MIG/MAG, TIG >1A, Plasma, Grinding, Tack Welding
Additional information
| Weight | 13.16 lbs |
|---|---|
| Dimensions | 12 × 10 × 12 in |
