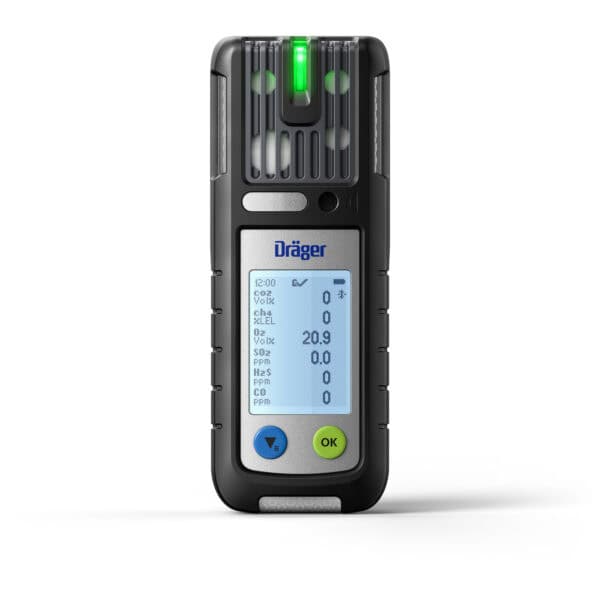

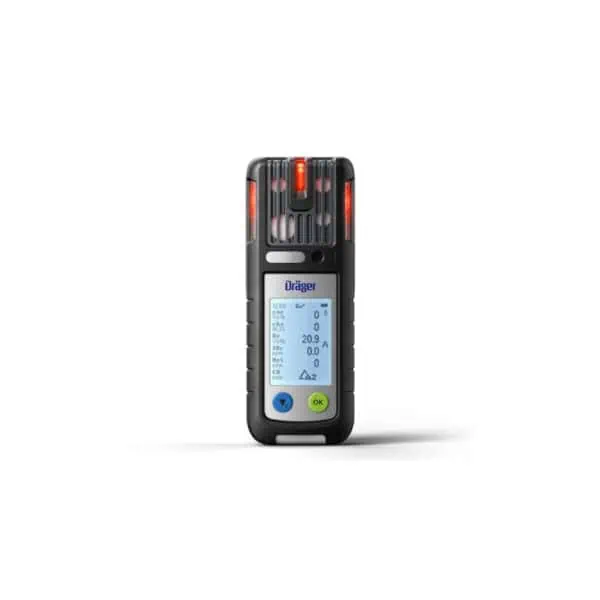

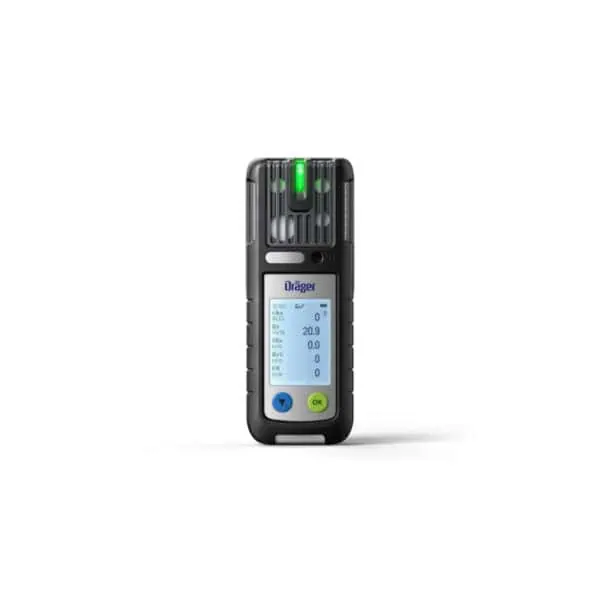

Dräger X-am 5800 Multi-Gas Detector

The Dräger X-am 5800 is a configurable portable multi-gas detector designed for personal air monitoring and hazardous-atmosphere applications. Depending on the sensor configuration, the X-am 5800 can monitor combustible gases and vapors, oxygen and toxic gases. The instrument supports up to six gases and can be configured with CatEx, electrochemical, PID and infrared sensor technologies.

The X-am 5800 is designed for applications including personal air monitoring and confined-space entry. An optional external X-am Pump can be used for remote sampling and clearance measurements in areas such as channels, shafts and tanks.

Configure the X-am 5800 for Your Application

The X-am 5800 is a configurable gas detection platform. Sensor selection determines which gases the instrument can detect, so the appropriate configuration should be selected based on the hazards being monitored and the requirements of the application.

Available sensor technologies include:

• CatEx for combustible gases and vapors
• Electrochemical sensors for oxygen and toxic gases
• PID sensors for volatile organic compounds (VOCs)
• Infrared sensors for selected gases

Dräger offers a broad selection of compatible sensors for the X-am 5800. We have the most popular configurations we sell pre-loaded on our site, but if you’re not sure, or don’t see what you need, you can contact us and we’ll help you select a configuration for your specific application.

Key Features

• Portable multi-gas detector for personal monitoring
• Configurable for multiple gas detection requirements
• Supports up to six gases depending on configuration
• CAT, electrochemical (EC), PID and infrared (IR) sensor technologies available
• Shock-resistant CatEx SR sensor

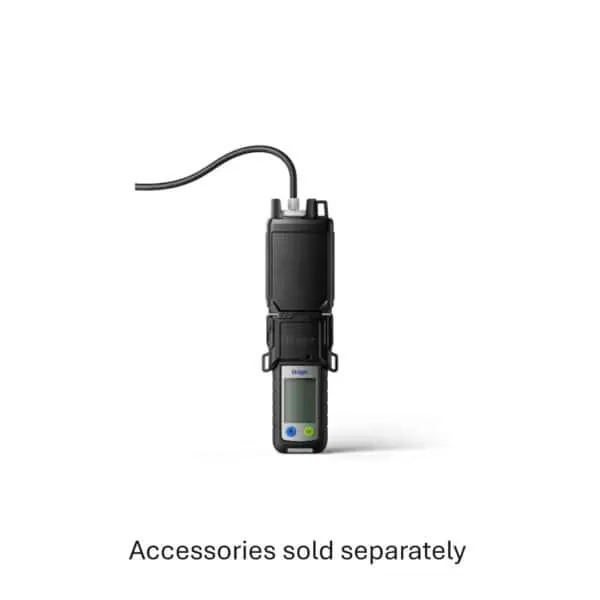

• Optional external X-am Pump for remote sampling
• Bluetooth connectivity for compatible Dräger Gas Detection Connect applications
• Compatible with Dräger X-dock testing stations
• Compatible with Dräger bump test equipment
• IP68 protection
• Designed for use in demanding industrial environments

Gas Detection Capabilities

The X-am 5800 can be configured for different gas detection requirements. Depending on the selected sensors, measurable substances include combustible gases, oxygen, carbon monoxide, hydrogen sulfide, nitrogen dioxide, sulfur dioxide, VOCs and many other substances.

Because sensor selection determines the actual detection capabilities of a specific instrument, always verify the sensor configuration before ordering.

Common Detection Applications

• Combustible gas and vapor detection (Ex)
• Oxygen monitoring (O2)
• Toxic gas monitoring
• Hydrogen sulfide (H₂S) monitoring
• Carbon monoxide (CO) monitoring
• VOC monitoring
• Hazardous atmosphere detection
• Personal air monitoring

Applications

Personal Air Monitoring

The X-am 5800 is designed for personal monitoring and provides workers with real-time information about the atmospheric hazards detected by the selected sensor configuration.

Confined Space Entry

The X-am 5800 can be configured for confined-space applications and can be paired with the optional X-am Pump for remote sampling and clearance measurements in channels, shafts and tanks.

Hazardous Atmosphere Monitoring

With the appropriate sensor configuration, the X-am 5800 can monitor combustible gases, oxygen and toxic gases in industrial environments where atmospheric hazards may be present.

X-am 5800 Sensors & Configurations

The X-am 5800 uses interchangeable Dräger sensors, allowing the instrument to be configured for different monitoring requirements.

Available sensor options include CatEx, electrochemical, PID and infrared technologies, with a broad selection of Dräger sensors available for specific gases and applications.

Because configurations vary, contact Accurate Safety if you need assistance determining the appropriate combination of sensors for your application.

X-am 5800 Connectivity & Testing

The X-am 5800 can integrate with Dräger’s Gas Detection Connect software using Bluetooth for data transfer and fleet-management applications. The instrument is also compatible with Dräger X-dock testing stations, which can be used for automated bump testing, calibration and equipment management.

X-am 5800 Calibration, Bump Testing & Repair

Accurate Safety Distributors provides gas detector service for supported Dräger equipment, including calibration, bump testing and repair.

Nationwide Mail-In Service

Customers anywhere in the United States can ship supported gas detectors to Accurate Safety for service. We perform the applicable service, then ship the equipment back to the customer. Contact us to learn more about this quick turnaround service.

On-Site Service

If you’re within driving distance of our mid-Michigan (Freeland) location, Accurate Safety provides on-site gas detector service for applicable customers and equipment.

Services may include:

• Gas detector calibration
• Bump testing
• Gas detector repair
• Sensor replacement
• Preventive maintenance
• Functional testing
• Troubleshooting

Service availability depends on the specific instrument, configuration and service requirement. Contact Accurate Safety with the model number and service need before sending equipment.

Buy the Dräger X-am 5800 from Accurate Safety

Accurate Safety Distributors can help you select the appropriate X-am 5800 configuration for your gas detection requirements. Each unit can be configured based on the sensors and accessories needed for the application.

Accurate Safety Distributors also provides ongoing gas detector service, including calibration, bump testing and repair, with both on-site and nationwide mail-in service options.

Contact Accurate Safety Distributors if you need help selecting a configuration or servicing an existing Dräger gas detector.

Industries

Oil & gas, petrochemical, chemical processing, manufacturing, utilities, wastewater treatment, mining, power generation, construction, industrial maintenance, emergency response, fire and rescue, environmental services, distribution, warehouse

Applications

Personal air monitoring, confined-space entry, hazardous atmosphere monitoring, combustible gas detection, toxic gas monitoring, oxygen monitoring, industrial hygiene, tank entry, remote atmospheric sampling, maintenance and shutdown operations, emergency response

Frequently Asked Questions (FAQ)

Is the Dräger X-am 5800 a multi-gas detector?

Yes. The X-am 5800 is a configurable portable multi-gas detector. The number and type of gases detected depend on the sensors installed in the specific configuration. Dräger’s current technical information identifies configurations supporting up to six gases.

What gases can the X-am 5800 detect?

The X-am 5800 can be configured with sensors for combustible gases, oxygen and a wide range of toxic gases and VOCs. The exact gases detected depend on the selected sensor configuration, but there are 30+ gases to select from. We have the most popular combinations on our site, but can configure devices to suit your needs. Contact us to learn more.

Can the X-am 5800 be used for confined-space entry?

Yes. Dräger identifies confined-space entry as an application for the X-am 5800. The optional X-am Pump can also support remote sampling and clearance measurements in channels, shafts and tanks.

Does the X-am 5800 require calibration?

Gas detection instruments should be maintained and tested according to the manufacturer’s instructions and the user’s gas detection program. Accurate Safety provides calibration and bump testing for supported gas detection equipment.

Can ASD repair the Dräger X-am 5800?

Yes, Accurate Safety provides repair and service for supported Dräger gas detection equipment. Contact us with the instrument model and service requirement to confirm service availability.

Can I send my X-am 5800 to Accurate Safety for service?

Yes. Accurate Safety accepts supported gas detection equipment nationwide by mail. Customers ship the instrument(s) to ASD, we perform the applicable service, and then ship the equipment back. Contact us to utilize this service.

Does Accurate Safety provide on-site gas detector service?

Yes. Accurate Safety provides on-site service for applicable gas detection equipment and service requirements. Local customers drop off the equipment, and we service and return it quickly. Often in 48 hours or less.

Can Accurate Safety replace X-am 5800 sensors?

Sensor replacement may be available depending on the instrument, sensor and service requirement. Contact us with the X-am 5800 configuration or sensor information for assistance.
